Harford to Perryman

115 kV Line Rebuild

0

Miles of Line

0 kV

Voltage

Project Need

  • Both transmission lines are wood H-frame construction with poles dating back to the 1950s. Nearly every structure has significant corrective maintenance/aging infrastructure concerns (degraded pole shafts, arms and tops; bird holes, degraded hardware etc.)
  • Installing self-supporting steel poles will significantly reduce the quantity of future corrective maintenance work orders as a result of bird holes, broken arms, degraded poles and hardware)
  • Replacing wood poles with steel poles will also help to eliminate bird nesting on the structures. Bird nesting can cause electrical outages
  • Rebuilding the transmission line will reduce the quantity of structures by approximately 50%.  This will reduce the quantity of ground inspections and will eliminate the inspection/treatment of over 80 wood poles

Project Description

  • Rebuild two single-circuit 115 kV wood H-frame circuits as one double-circuit steel monopole line
  • New structures (42) will be tubular steel on concrete drilled pier foundations
  • Overall project length is approximately 4 miles (84 existing structures)
  • This project is subject to PSC approval and design changes

Resources

  • CPCN Waiver Letter for Perryman to Harford Rebuild Project - May 20, 2020

  • CPCN Waiver Request for Perryman to Harford Rebuild Project - April 15, 2020

  • Harford to Perryman 115 kV Line Rebuild Kick Off Letter - April 2020

Timeline

December 2019

Begin Design and Engineering

April 2020

Submit CPCN Waiver Request to Maryland PSC

May 2020

CPCN Mandatory Waiver Approved

June 2020

Submit for Environmental Permits / Approvals

August 2020

Complete Design and Engineering

October 2020

Construction Start

December 2021

Project Service Date

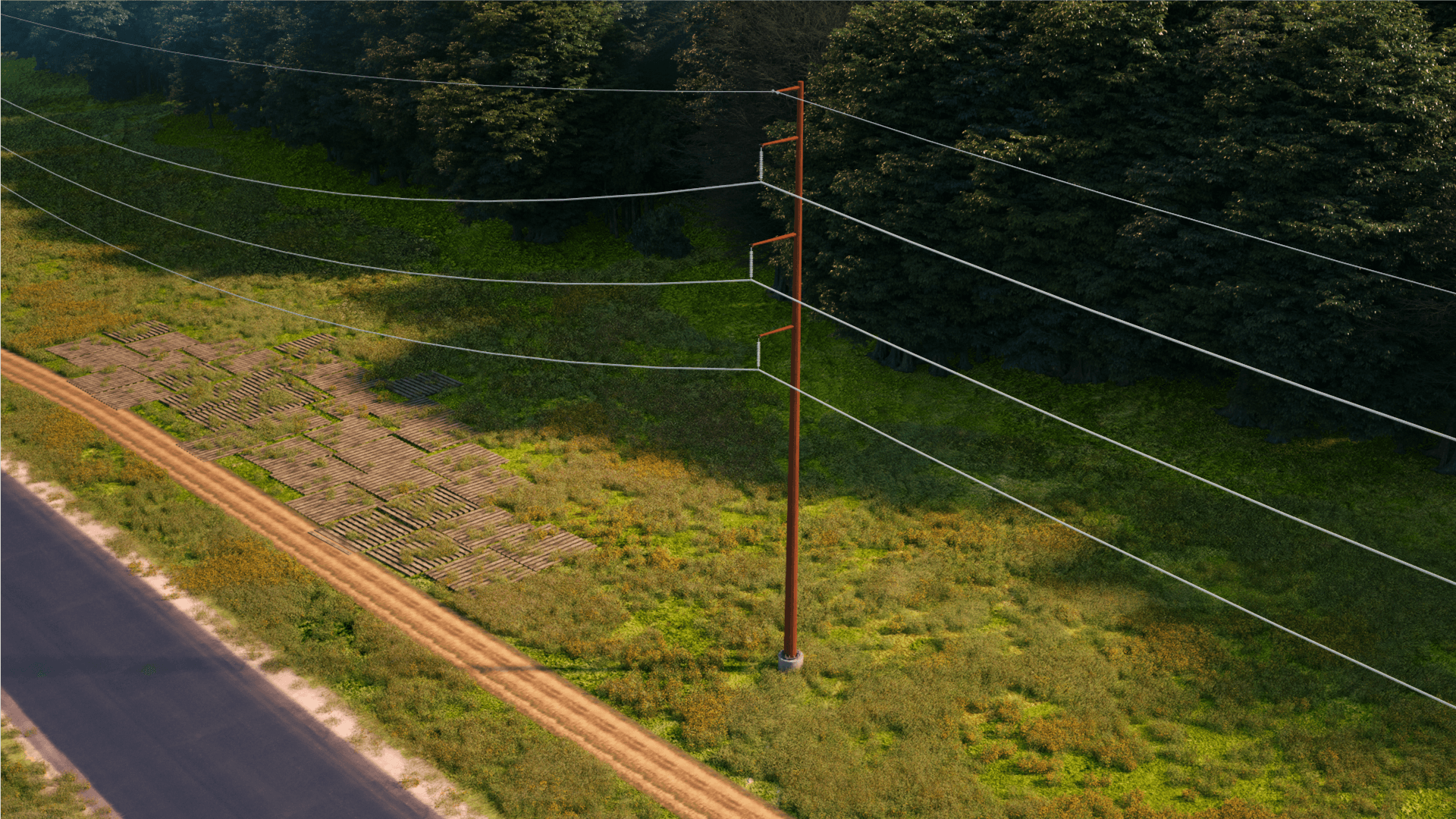

Photo Simulation

View looking southwest. This project is subject to PSC approval and design changes.

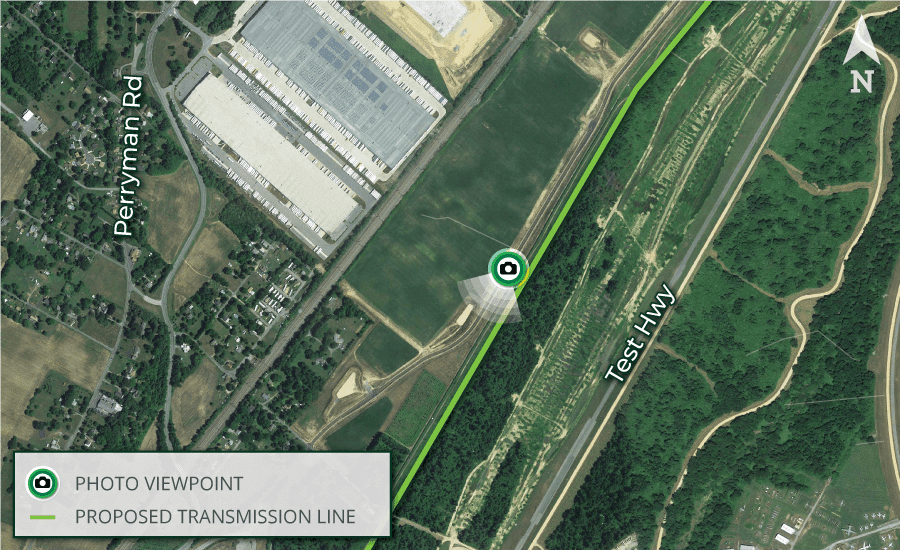

Viewpoint Location Map

Web_InsetMap_Harford-Perryman-LG

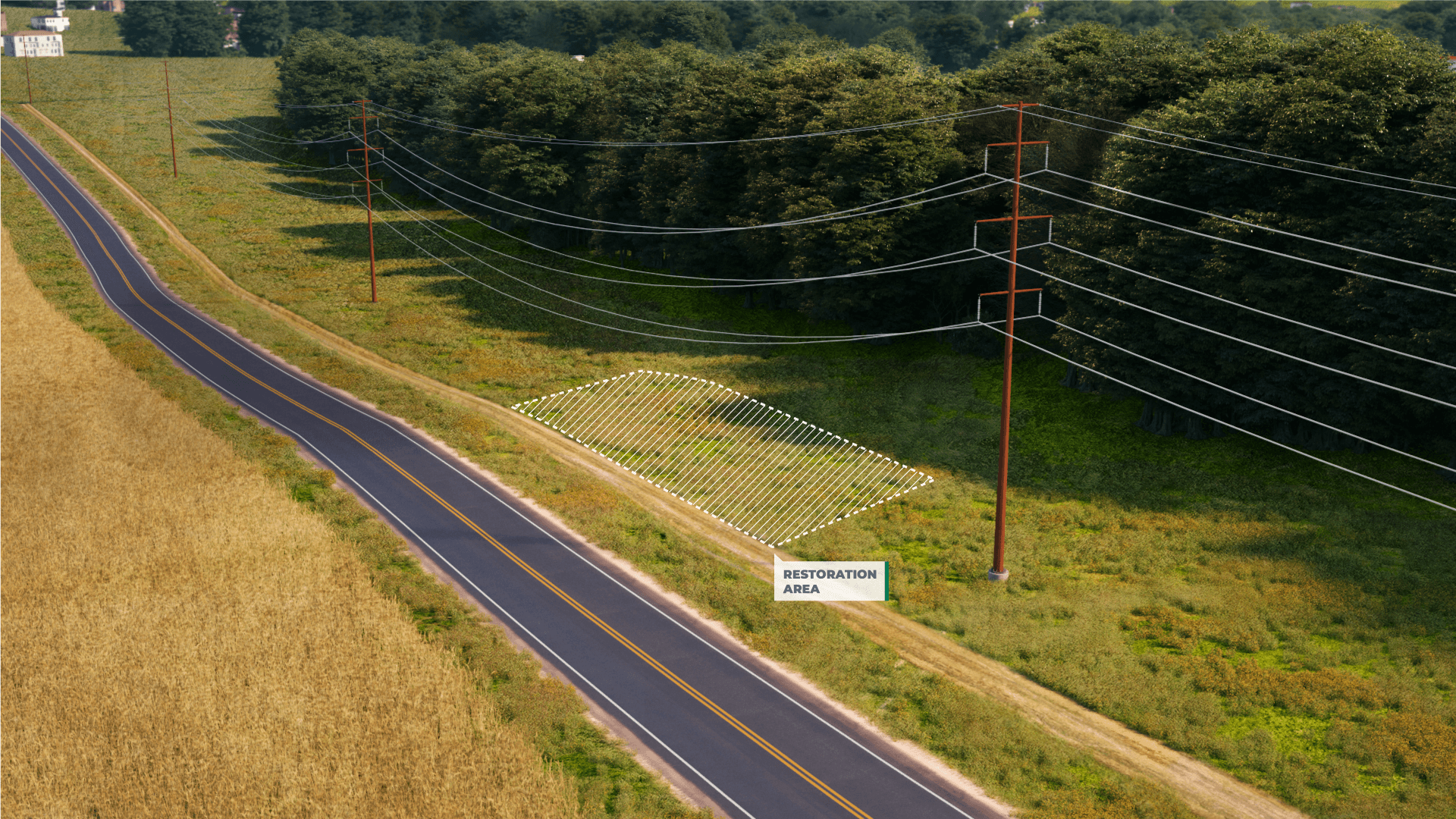

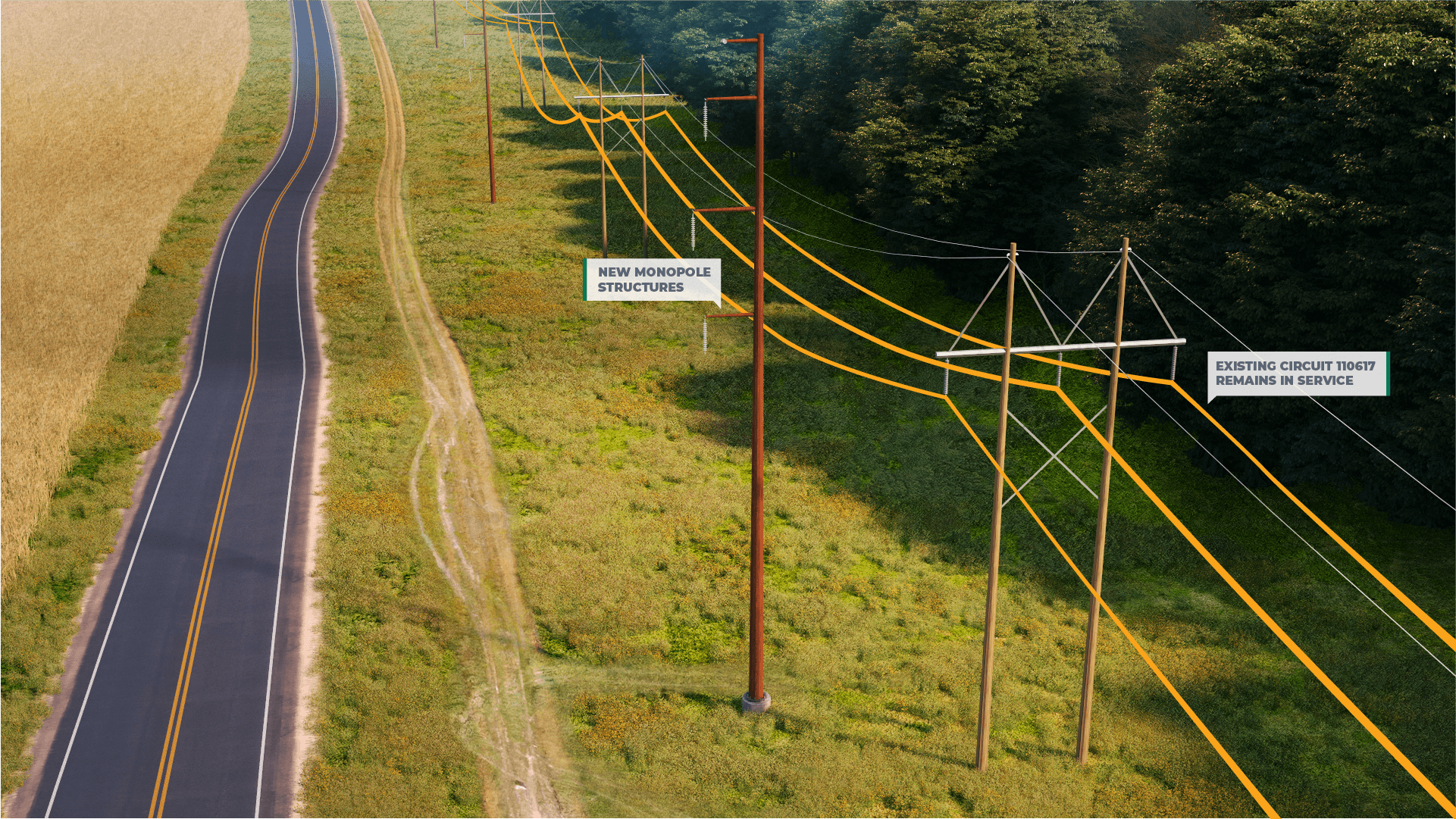

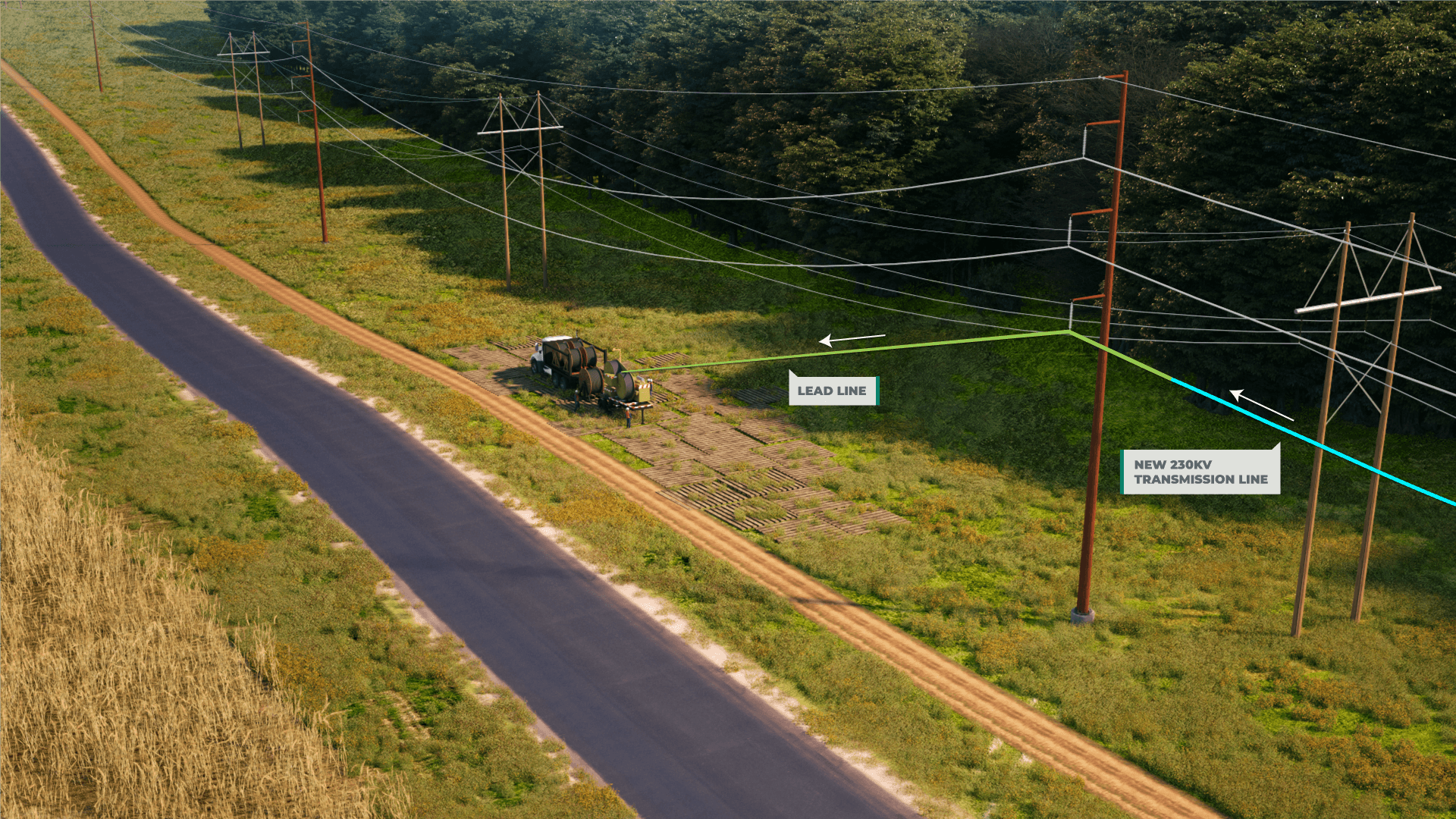

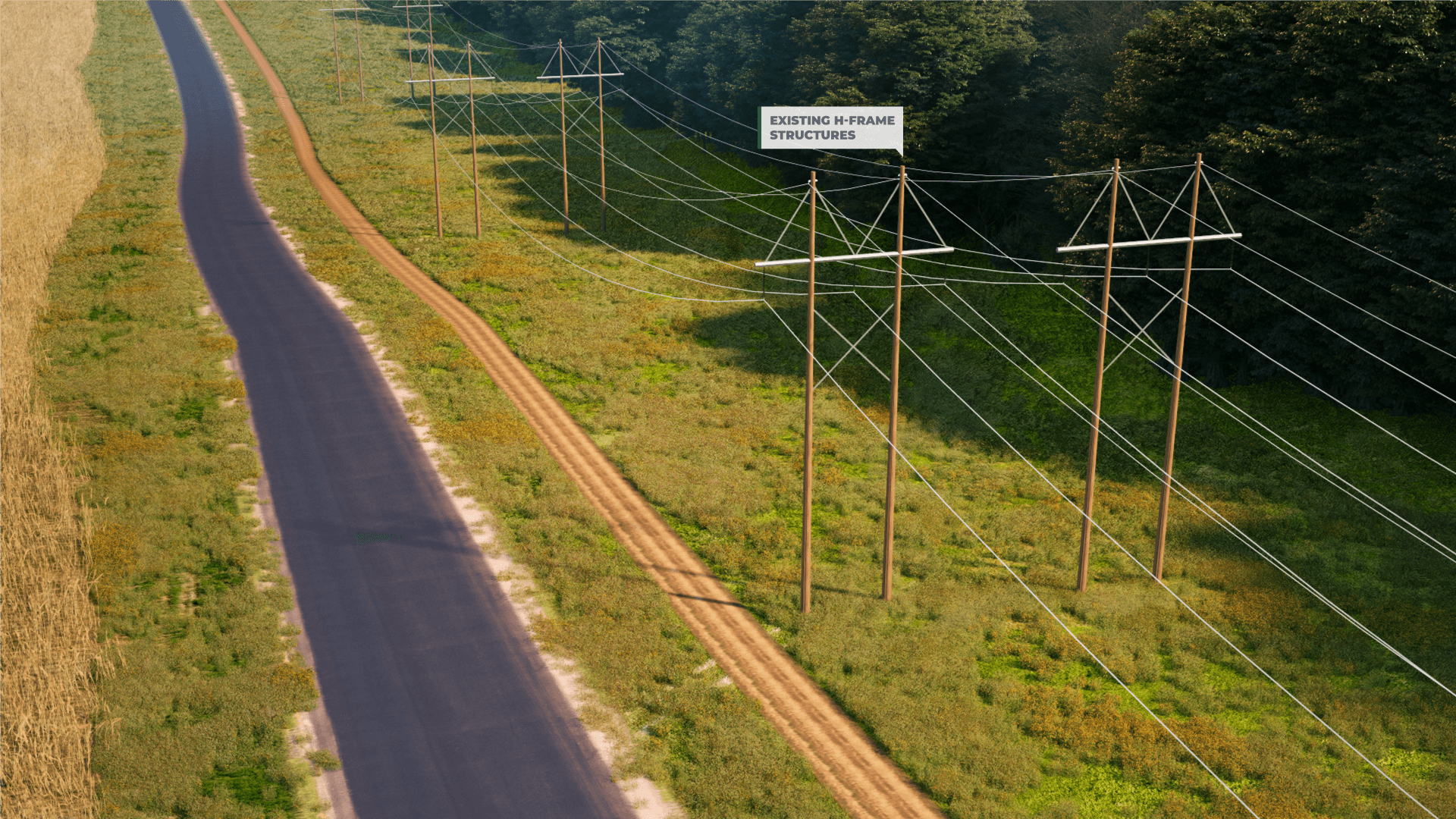

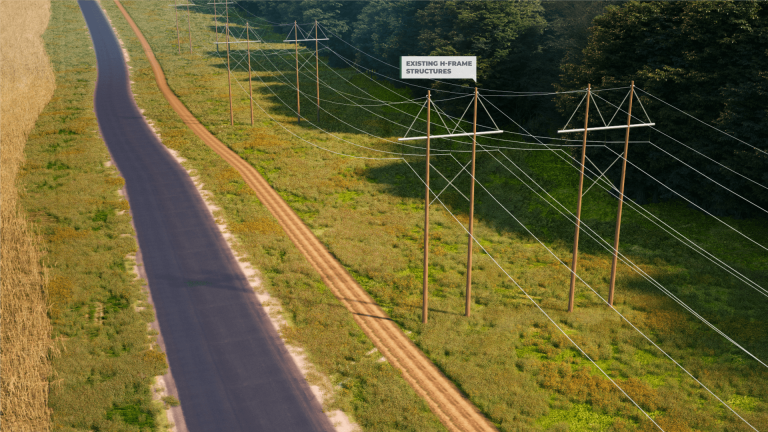

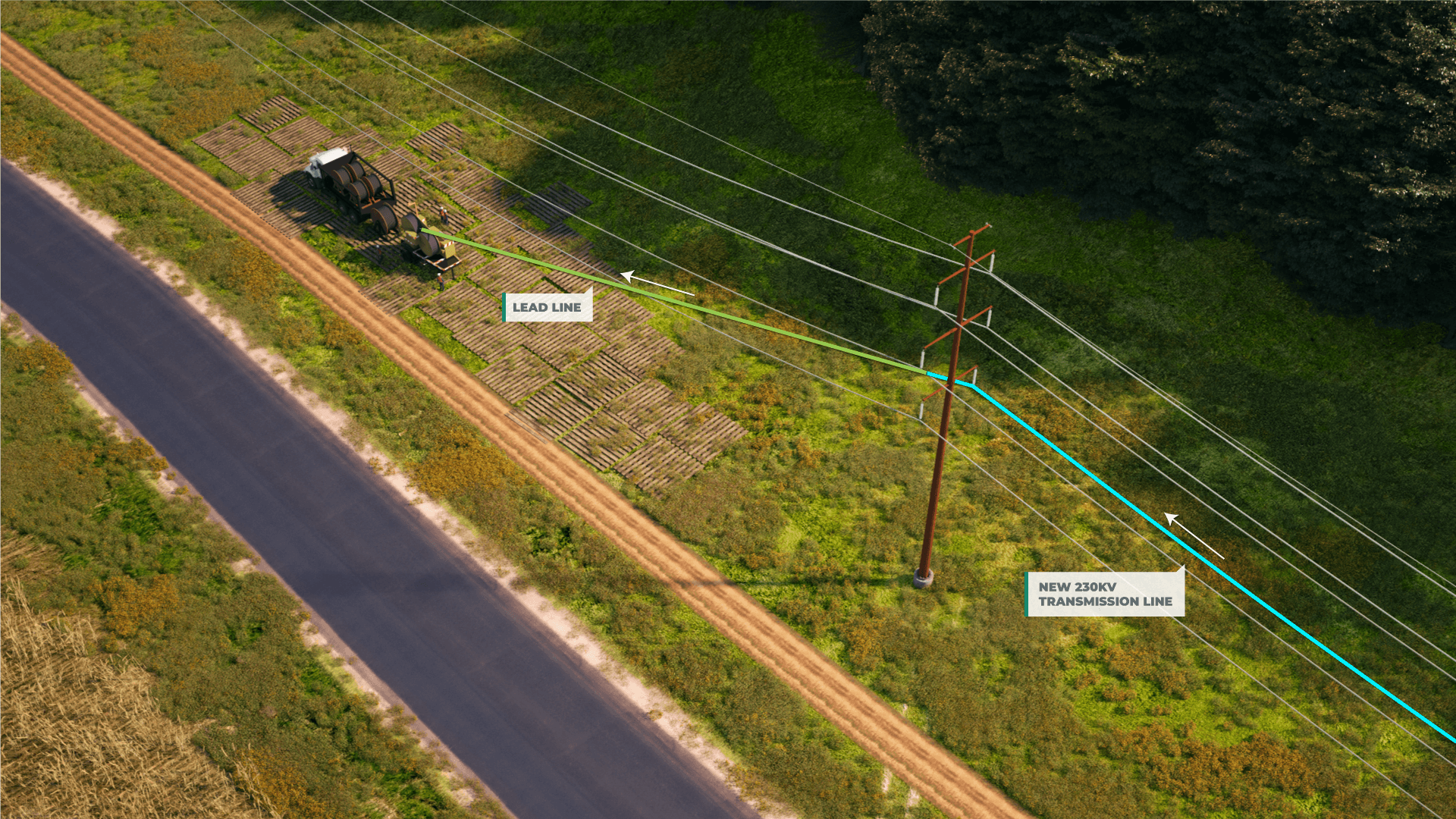

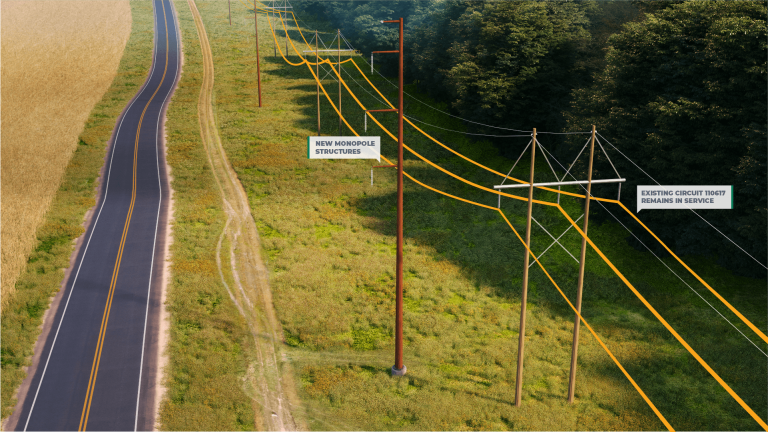

Construction Sequence

Construction sequence graphics are intended to provide an overview of the typical construction sequence for a project. These graphics are used to give stakeholders a general idea of what to expect regarding this project’s construction process and effort. This project is subject to PSC approval and design changes.

Right of Way Path

Contact BGE

If you have any questions about this project, please contact BGE at harfordperryman@bge-tsrep.com and refer to the Harford to Perryman 115 kV Line Rebuild Project. Please include your name and address for prompt follow-up.
